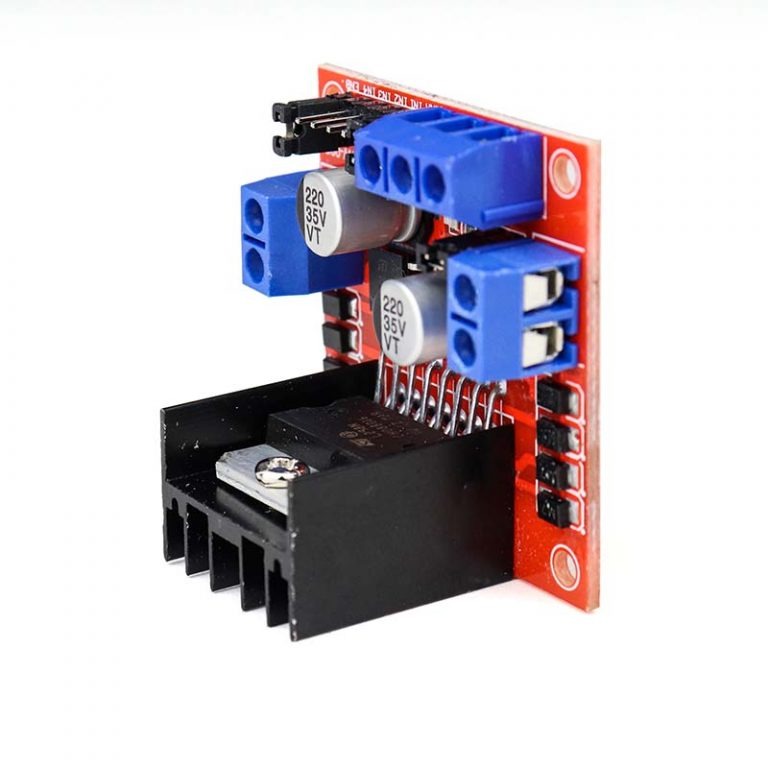

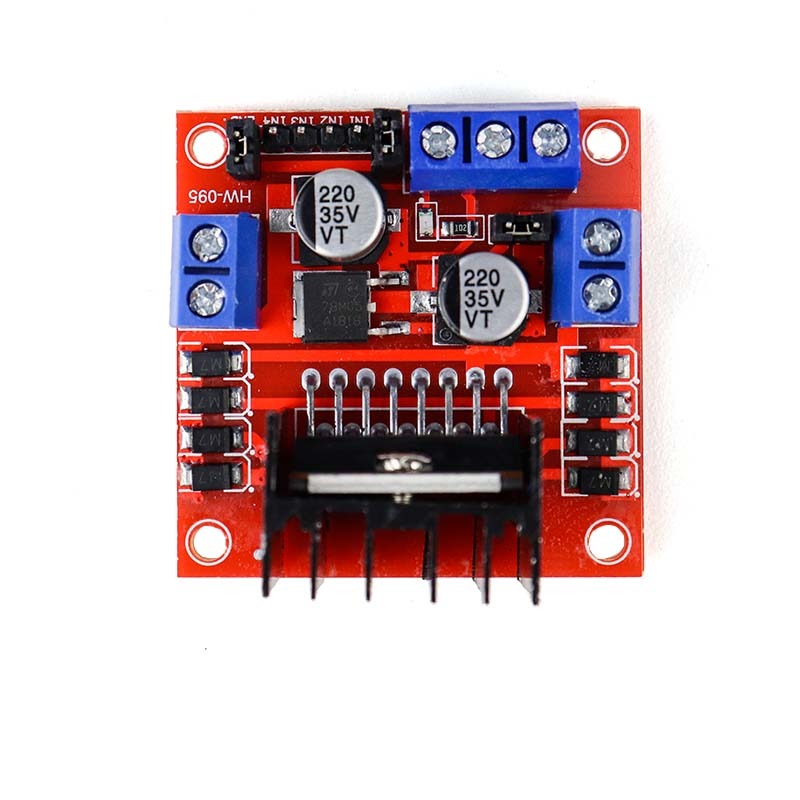

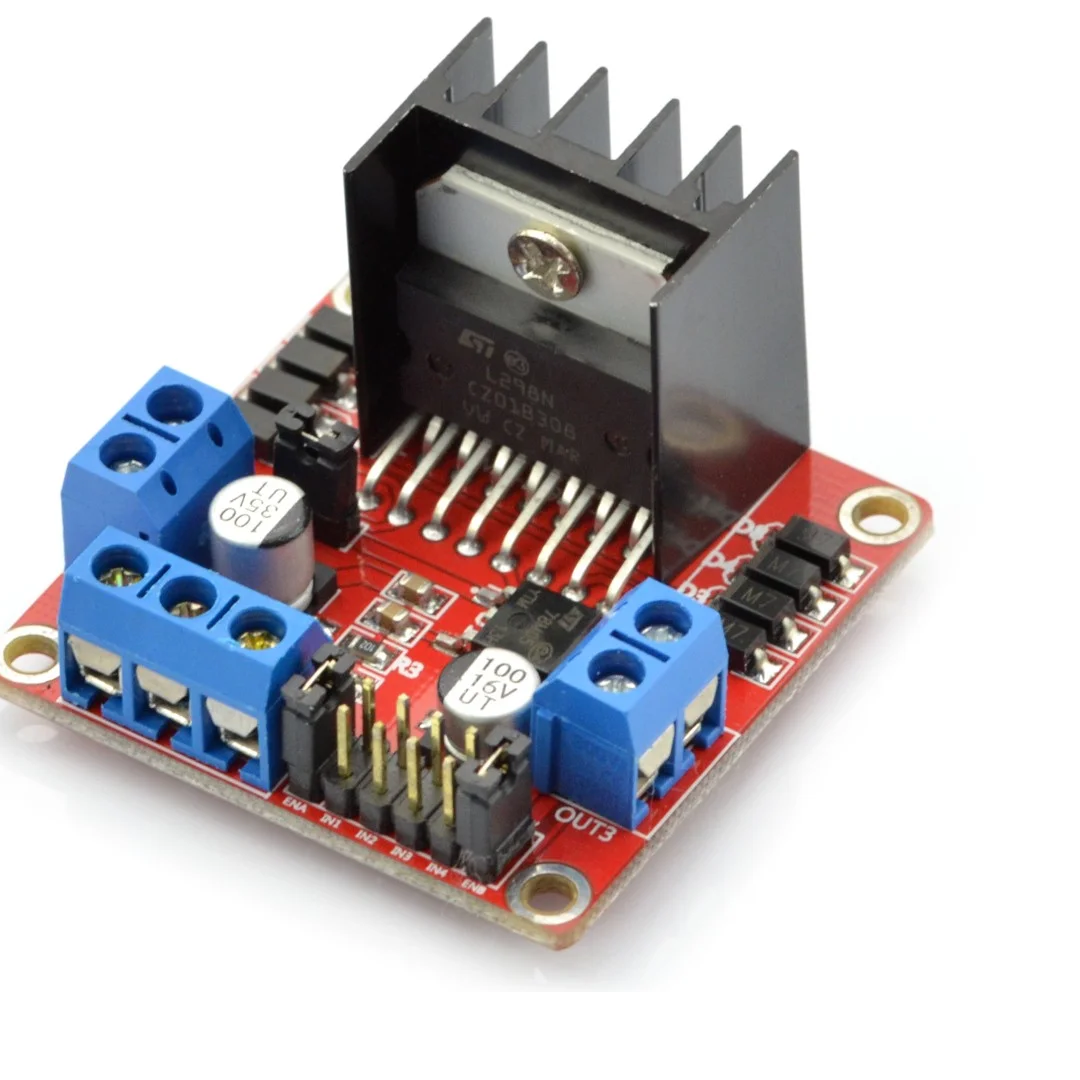

L298N Motor Driver Module – Dual H-Bridge for DC & Stepper Motors

Introduction: The Essential “Muscle” for Robotics

In the world of DIY electronics and robotics, microcontrollers provide the “brain,” but motor drivers provide the “muscle.” The L298N Motor Driver Module is one of the most popular choices globally because of its ability to handle high voltage and current while remaining incredibly easy to use. From Virtual Pathshala, we bring you this module to ensure your robots—whether they are simple obstacle avoiders or complex industrial prototypes—operate with precision and power.

High-Power Dual H-Bridge Architecture

The heart of this module is the L298N IC, which contains two complete H-bridge circuits.

• Bi-Directional Control: Each H-bridge allows you to flip the polarity of the power going to your motors. This means you can make your motors spin forward, backward, or stop instantly (electronic braking).

• Multi-Motor Support: You can drive two DC motors simultaneously (perfect for two-wheeled robots) or a single 4-wire, two-phase stepper motor for projects requiring high positional accuracy.

Advanced Power Management & Onboard Regulator

The L298N Motor Driver Module is designed to work with a wide range of power sources.

• Motor Supply (Vs): It can handle an input voltage from 5V up to 35V, making it compatible with various battery types, including LiPo and Li-ion packs.

• 78M05 Voltage Regulator: The module includes a built-in 5V regulator. If you are powering your motors with 7V to 12V, this regulator can actually provide a steady 5V output to power your Arduino or ESP32, simplifying your wiring.

• Important Note: If your motor supply exceeds 12V, we recommend removing the onboard jumper to protect the logic circuitry.

Speed Control via PWM (Pulse Width Modulation)

Precision is key in robotics. The L298N module features Enable (ENA and ENB) pins that allow for full speed control.

• Smooth Acceleration: By sending a PWM signal from your microcontroller to these pins, you can adjust the speed of each motor from 0% to 100%. This is essential for turning corners smoothly or slowing down as an obstacle is detected.

• Logic Pins (IN1-IN4): These four digital pins determine the direction of rotation. The combination of these signals with PWM allows for sophisticated maneuvers like tank turns and pivot rotations.

Thermal Stability and Durability

High current often leads to heat, but the L298N is built to last.

1. Large Heat Sink: The module comes pre-fitted with a substantial black aluminum heat sink to dissipate heat generated during high-load operations.

2. Protection Diodes: It features built-in flyback diodes that protect the IC from the inductive “back EMF” spikes generated when a motor starts or stops suddenly.

3. High Current Handling: It can deliver up to 2A per channel (continuous), which is enough for most standard gear motors and small stepper motors.

Why Choose L298N From Virtual Pathshala?

At Virtual Pathshala, we understand the needs of technical trainers and students:

• Quality Assured: We source modules with high-grade capacitors and sturdy screw terminals to ensure reliable connections during long classroom sessions.

• Comprehensive Learning: This module is a core part of our Level 2 and Level 3 Robotics curriculum. We provide ready-to-use code for both Arduino and ESP32.

• Hands-On Support: If you face issues with “voltage drop” or wiring, our WhatsApp community and technical support team are always ready to guide you.

Ideal Applications:

• Obstacle Avoiding Robots: The perfect companion for ultrasonic sensors and Arduino boards.

• Line Follower Robots: Provides the precise motor response needed for high-speed tracking.

• RC Cars: Reliable power for high-torque gear motors.

• Automated Curtains/Gates: Use the stepper motor mode for precise linear motion.

Technical Specifications:

• Driver Chip: L298N Dual H-Bridge

• Logical Voltage: 5V

• Drive Voltage: 5V – 35V

• Drive Current: 2A (Max per bridge)

• Max Power: 25W

• Dimensions: 43 x 43 x 27mm

• Weight: ~30g

Quick Setup Tip for Beginners:

To get started with your L298N Motor Driver Module, always remember to connect the Ground (GND) of the motor driver to the GND of your microcontroller. Without a common ground, the control signals will not work correctly. For more complex setups involving stepper motors, check out our Motor Control Masterclass or browse our Robot Chassis Kits to find the perfect frame for your driver. For deep technical details, you can view the Official STMicroelectronics L298 Datasheet.
