MAX98357A I2S 3W Class D Amplifier Module – High-Efficiency Digital Audio Power Mono Amplifier for ESP32 & Raspberry Pi

MAX98357A I2S Amplifier Module – High-Performance Digital Audio Class D Mono Output Board

The MAX98357A I2S Amplifier module is an ultra-compact, high-efficiency, and digital-input mono audio amplifier breakout board deployed extensively across India for smart talking home assistants, portable Bluetooth speakers, retro gaming arcade rigs, and internet radio stream players. By receiving raw digital audio samples straight over the Inter-IC Sound ($I^2S$) bus, the MAX98357A I2S Amplifier skips the need for a separate microcontroller DAC (Digital-to-Analog Converter) or noisy analog pre-amplifier. This streamlined architectural pipeline delivers crystal-clear, high-fidelity mono sound output directly to a connected speaker terminal.

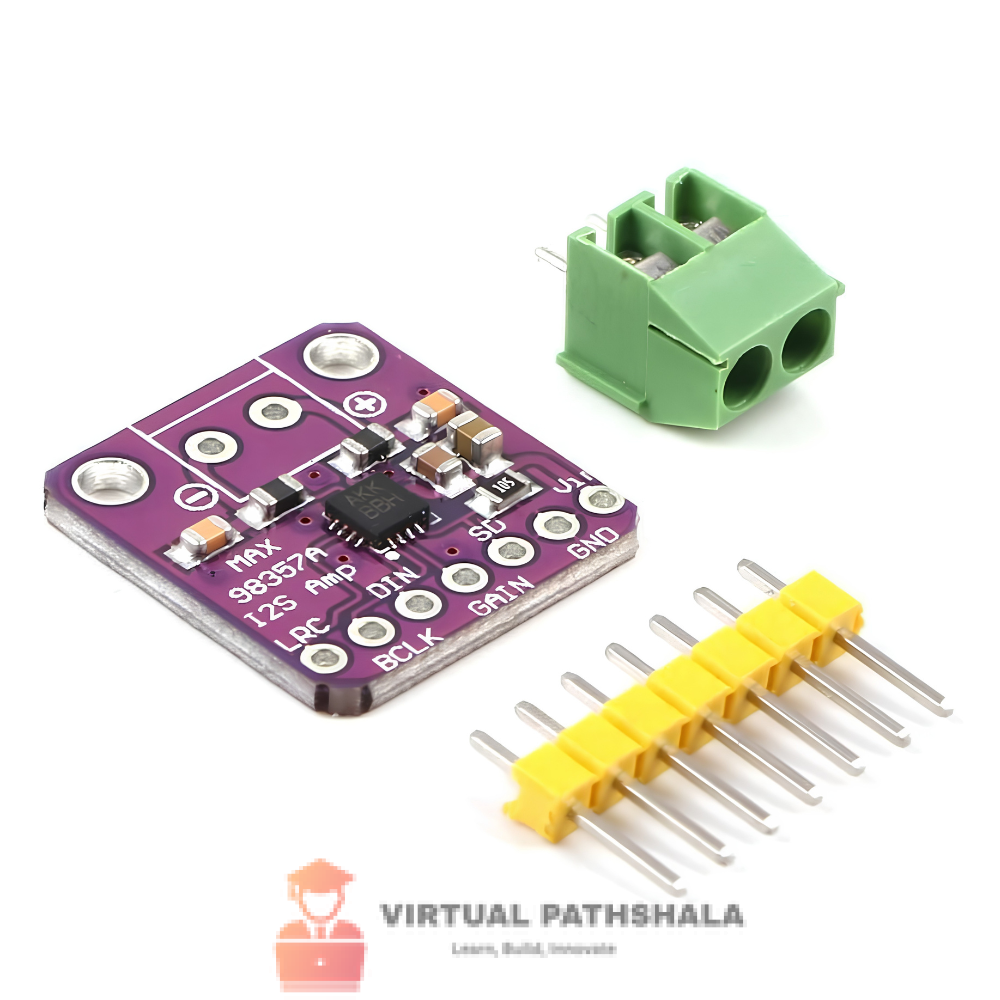

This premium listing highlights the popular purple PCB breakout layout available at VirtualPathshala. The complete hardware package includes an unpopulated yellow 7-pin header strip for breadboard prototyping along with a heavy-duty green 2-pin screw terminal block for secure, solderless speaker connection links. Whether you are generating voice synthesis prompts on an advanced IoT edge node or adding sound tracks to a compact handheld gaming console, the MAX98357A I2S Amplifier provides crisp acoustic performance up to 3W of output power. Expand your embedded multimedia projects by pairing this audio booster with our collection of ESP32 Development Boards and high-gain Omnidirectional MEMS Microphones.

Why Choose a Digital I2S Amplifier Over Traditional Analog Audio Boards?

Traditional analog amplifiers (like the old LM386 modules) require a clean analog input signal from a headphone jack or an internal DAC pin. This setup is highly vulnerable to electromagnetic cross-interference (EMI), picking up annoying background hums, high-pitched whines, and static buzzing from nearby WiFi or cellular antennas. The MAX98357A I2S Amplifier systematically eliminates this signal degradation entirely. By keeping the audio data completely digital all the way until it reaches the amplifier chip core, it guarantees a clean, noise-free sound floor even inside dense electronic enclosures with heavy radio activity.

Key Features of the MAX98357A I2S Amplifier Module

1. High-Efficiency Class D Modulation Architecture

The internal processing core of the MAX98357A I2S Amplifier relies on a smart Class D switching layout that achieves up to 92% power efficiency. Unlike old Class AB amplifiers that get hot and waste precious energy as heat, this module runs cool to the touch, making it an exceptional option for battery-powered or portable IoT enclosures.

2. Direct Plug-and-Play Digital Audio Serial Input

The breakout synchronizes effortlessly over a standard Inter-IC Sound ($I^2S$) bus protocol layout. It handles three standard timing and data signals natively—BCLK (Bit Clock), LRC (Left-Right Clock), and DIN (Data In)—allowing the host microchip to stream clean digital audio waveforms smoothly without high-overhead sampling conversions.

3. Customizable Channel Selection & Gain Settings

The module lowers integration friction inside complex audio systems by exposing explicit hardware configuration pins on the board. Tying the Gain pin to ground, power, or leaving it open lets you scale internal amplification limits across 5 distinct settings ($3\text{dB}$, $6\text{dB}$, $9\text{dB}$, $12\text{dB}$, or $15\text{dB}$). Additionally, the SD (Shutdown) line acts as a mode selector: configuring an external resistor network splits the logic to decode either the Left channel, Right channel, or a clean mono mix of both channels.

4. Comprehensive 32-Bit Processor & DSP Compatibility

Operating efficiently within modern high-speed low-voltage DC logic constraints, this module connects seamlessly to advanced computing hosts featuring hardware $I^2S$ peripherals:

• ✅ ESP32 / ESP32-S3 Series links – Native hardware mapping using the ESP-IDF I2S driver or Arduino audio libraries
• ✅ Raspberry Pi Single-Board Units – Simple configuration as an external digital audio HAT card via the 40-pin GPIO rail
• ✅ Raspberry Pi Pico (RP2040) – Fluent integration with custom PIO (Programmable I/O) state machine $I^2S$ audio engines

5. Robust Onboard Short-Circuit & Thermal Protection Failsafes

The integrated circuit houses premium electronic safety layers designed to handle accidents in the lab. If the output speaker terminals are accidentally short-circuited or if the module encounters an over-temperature thermal spike, it automatically shuts down output paths to shield both the amplifier core and your upstream microcontroller from permanent hardware damage.

MAX98357A I2S Amplifier – Full Technical Specifications

What Is Safely Included inside the Package

• ✅ 1× MAX98357A I2S 3W Class D Mono Amplifier Breakout Module (Purple PCB)
• ✅ 1× 7-Pin High-Quality Yellow Header Strip Section (Unsoldered)
• ✅ 1× 2-Pin Green Screw Terminal Block Connector (Unsoldered)

Frequently Asked Questions – MAX98357A I2S Amplifier

How do I switch this module to decode the Left or Right channel for a stereo speaker setup?

The **MAX98357A I2S Amplifier** is a mono amplifier module, meaning it drives one single physical speaker. By default, with the **SD** (Shutdown) pin left disconnected, the module mixes both the Left and Right digital channels together into a single mono output stream. If you are building a dual-speaker stereo system, deploy two separate modules: connect a $10\text{K}\Omega$ pull-up resistor from VIN to the first module’s SD pin to lock it to the Left channel, and use a $100\text{K}\Omega$ pull-up resistor on the second module’s SD pin to set it to parse the Right channel data.

Can I connect this digital amplifier to an Arduino Uno board?

No. Standard 8-bit AVR microcontrollers like the Arduino Uno, Nano, or Mega do not possess hardware $I^2S$ communication peripherals, nor do they have the processing clock speeds or RAM to decode and buffer digital audio bitstreams. For a smooth plug-and-play experience, pair this module with 32-bit controllers featuring native hardware $I^2S$ registers, such as the ESP32 series or the Raspberry Pi Pico.

What type of speaker works best with this specific breakout module?

The module drives standard passive miniature speakers natively. For the absolute loudest audio volume response without distortion, pair it with a small $4\Omega$ (4 Ohm) passive speaker driven by a 5V input rail. If you are using a lower 3.3V power line, a small $8\Omega$ (8 Ohm) passive speaker (ranging from 0.5W to 2W capacity) will provide excellent, clear sound output while staying well within safe current draws.

Order Your MAX98357A I2S Amplifier Module Online Today

Add rich, loud digital voice alerts and custom sound effects to your handheld smart gadgets, construct responsive voice assistant nodes, or build custom retro arcade audio grids with ease. Dispatched across all domestic Indian locations with quick, dependable express shipping choices from VirtualPathshala. For official factory hardware data registers, step-by-step wiring schematics, and open-source audio playback code templates, please review the Official Component101 Electronics Engineering Reference Portal.
