Skydroid H12 Remote Control with Built-In Display – 12-Channel 30km Long-Range UAV Controller (Without Camera)

Skydroid H12 Remote Control with Built-In Display – The Most Capable
Long-Range UAV Controller Available in India

The Skydroid H12 Remote Control is the most feature-rich,
most capable, and most reliable long-range UAV ground controller available to
drone pilots, UAV engineers, and robotics professionals in India today. Built
around a Qualcomm Snapdragon 625 octa-core processor running a full Android
embedded operating system, the Skydroid H12 Remote Control
is not just a radio transmitter — it is a complete, self-contained ground
control station in a rugged, handheld form factor. With a built-in 5.5-inch
FHD sunlight-readable touchscreen, a 10,000mAh battery delivering up to 20
hours of operation, a control range of up to 30km, 12 channels, FHSS frequency
hopping technology, Hall Effect precision gimbals, and compatibility with all
major open-source flight controllers, the Skydroid H12 is the professional UAV
controller that serious pilots choose.

This listing is for the Skydroid H12 Remote Control Without Camera
— including the H12 transmitter, R12 receiver, carry case, and all accessories.
The camera and gimbal are not included in this variant. Browse our full range of
UAV Components and Development Boards
and Electronic Modules and
Accessories at VirtualPathshala.

What Makes the Skydroid H12 Remote Control the Professional’s Choice?

Most consumer drone controllers are closed ecosystems — they work only with
the manufacturer’s specific drone models and offer no configurability, no
ground station integration, and no developer support. The Skydroid H12
Remote Control is the opposite. Built on open Android with full SDK
support, compatible with Pixhawk, ArduPilot, PX4, and all major open-source
flight controllers, supporting QGroundControl and Mission Planner ground station
software, and providing transparent serial data transmission to any connected
device, the Skydroid H12 is the definitive long-range controller for custom
UAV builds, agricultural drones, inspection UAVs, research platforms, and
competitive robotics.

Key Features of the Skydroid H12 Remote Control

1. 5.5-Inch FHD 1920×1080 Sunlight-Readable Touchscreen

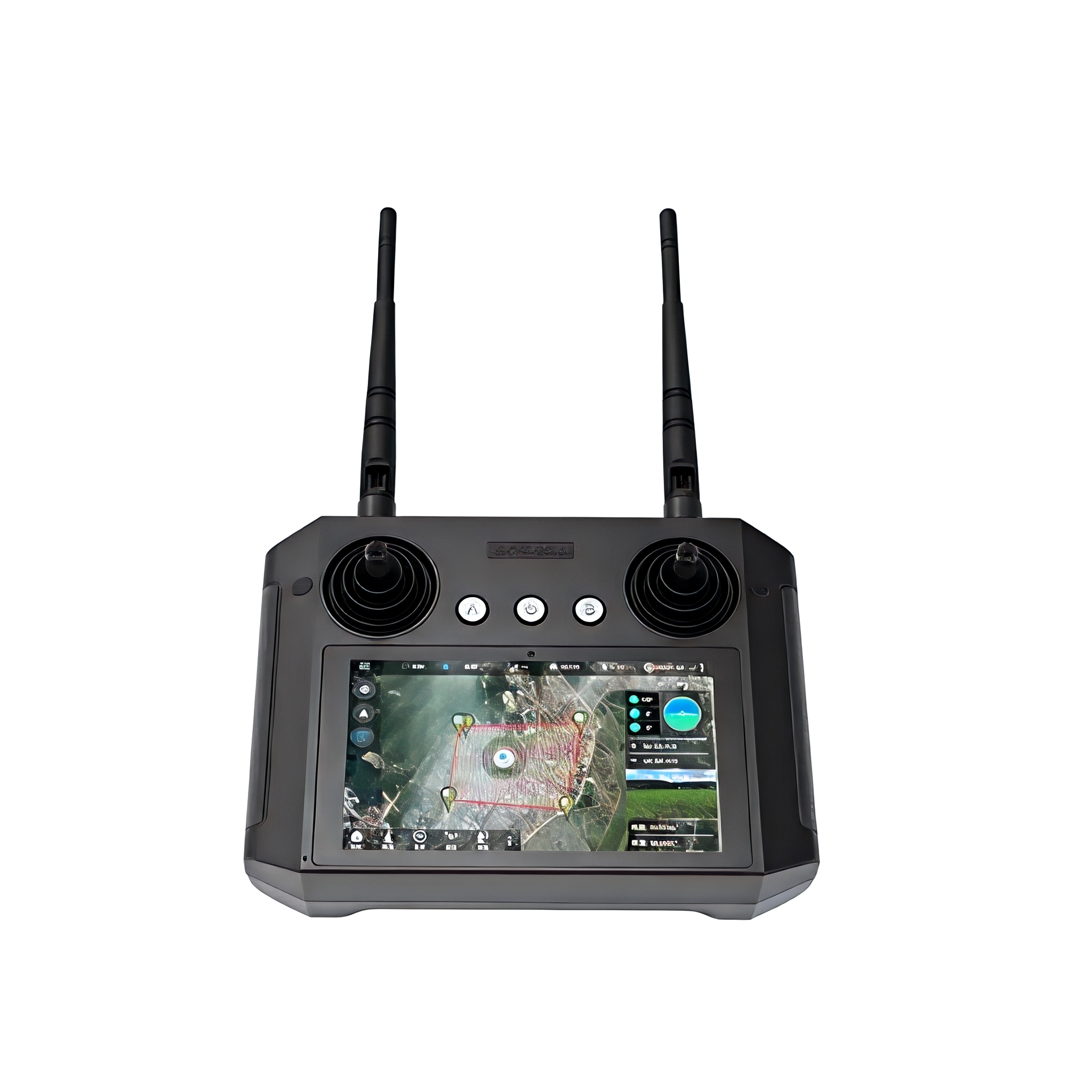

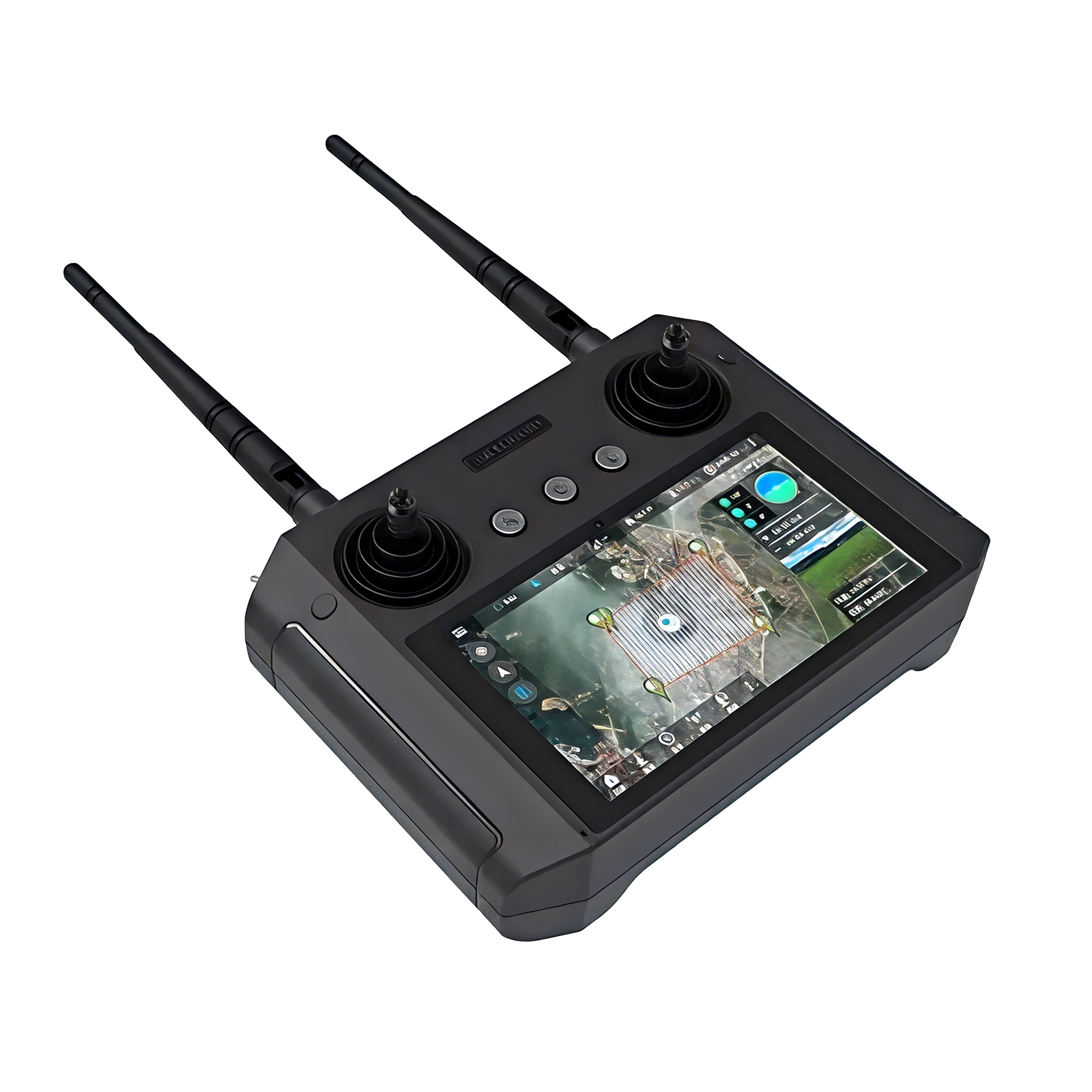

The Skydroid H12 Remote Control features a built-in 5.5-inch
full HD 1920×1080 high-brightness IPS touchscreen that delivers crisp, clear
visibility in all lighting conditions — including direct outdoor sunlight. This
eliminates the need to mount a separate tablet or smartphone to your controller,
reducing setup time, eliminating the risk of the phone slipping or overheating,
and producing a far more compact and professional field setup. The touchscreen
runs the Android OS directly, allowing you to run QGroundControl, Mission
Planner, Skydroid Fly App, and any other Android-compatible ground station
software natively on the controller itself.

2. Qualcomm Snapdragon 625 Octa-Core Processor with Android OS

The Skydroid H12 Remote Control is powered by the Qualcomm
Snapdragon 625 octa-core processor — the same chip used in mid-range Android
smartphones — running a full Android embedded operating system. This gives the
H12 genuine smartphone-class computing performance, enabling it to smoothly
run complex ground station applications, decode 1080P H.264/H.265 video streams
in hardware, execute intelligent mission planning algorithms, and run multiple
apps simultaneously without lag. The Android OS also means the controller is
fully updatable over the air via the Device Helper app, ensuring access to new
features and improvements without returning the unit for service.

3. Up to 30km Control Range with FHSS Technology

The Skydroid H12 Remote Control achieves an exceptional
control range of up to 30km using FHSS (Frequency Hopping Spread Spectrum)
technology across the 2.400–2.483GHz band. FHSS works by rapidly and
pseudo-randomly switching the transmission frequency dozens of times per second
— making the signal highly resistant to narrowband interference, deliberate
jamming, and the crowded 2.4GHz environment common near populated areas. The
dual antenna design provides spatial diversity — the two antennas complement
each other to maintain the strongest possible signal at all times, with
advanced algorithms automatically selecting the optimal antenna and frequency
at every moment during flight.

4. Advanced SDR Technology – Ultra-Low Latency Control

The Skydroid H12 Remote Control uses Software Defined Radio
(SDR) technology with a super protocol stack to deliver ultra-low control
latency, extremely strong anti-interference performance, and significantly
longer range than conventional analog or basic digital RC systems. SDR allows
the signal processing algorithms to be updated via firmware rather than
requiring hardware changes, meaning the H12’s communication performance can
be improved over its lifetime through software updates. This is one of the
key reasons why the Skydroid H12 delivers better interference rejection and
longer range than RC systems using older radio architectures at similar
transmit power levels.

5. Hall Effect Precision Gimbals – Smooth, Drift-Free Control

The control sticks on the Skydroid H12 Remote Control use
Hall Effect magnetic position sensors rather than conventional potentiometers.
Hall Effect sensors measure stick position using a magnetic field rather than
a resistive wiper — they produce no friction, never wear out, never develop
the dead zones and jitter that old potentiometers accumulate over time, and
provide perfectly smooth, consistent, high-resolution position data throughout
the full range of stick travel. For UAV pilots who need precise hover control,
smooth cinematic movement, and repeatable waypoint execution, Hall Effect
gimbals are a fundamental requirement — and the Skydroid H12 delivers them
as standard.

6. 10,000mAh Built-In Battery – Up to 20 Hours Operation

The Skydroid H12 Remote Control has a massive 10,000mAh
built-in rechargeable battery that delivers an extraordinary operating
endurance of 6 to 20 hours depending on screen brightness, radio transmit
power, and ground station activity. This means the controller will outlast
the battery of virtually any drone it is connected to — even agricultural
spray drones on long field missions — without requiring mid-mission recharging.
The battery is charged via a standard USB Type-C port, making charging
straightforward in the field using a power bank, vehicle charger, or mains
adapter.

7. Compatible with All Major Flight Controllers

The Skydroid H12 Remote Control and its included R12
receiver are compatible with the full range of popular open-source and
commercial flight controllers used in professional UAV builds:

• ✅ Pixhawk (all versions) – via SBUS or PPM
• ✅ Pixhack / V5 / V5 Nano / V5+ – via SBUS
• ✅ Holybro X7 / X7 Pro / Nora – via SBUS
• ✅ ArduPilot-based controllers – via SBUS + UART telemetry
• ✅ PX4-based controllers – via SBUS + UART telemetry
• ✅ CUAV flight controllers – via SBUS
• ✅ Custom boards – via SBUS, PPM, or PWM

The R12 receiver supports SBUS, PPM, and PWM output simultaneously, and
provides a dedicated UART port for bidirectional telemetry data transmission
back to the H12 display — giving pilots real-time flight data including
GPS position, altitude, speed, battery voltage, and flight mode status directly
on the controller screen.

8. QGroundControl and Mission Planner Compatible

The Skydroid H12 Remote Control runs QGroundControl (QGC)
and Mission Planner natively on its Android system, with a Skydroid-optimised
QGC version pre-installed that provides a larger, more field-readable map view
and enhanced UI elements compared to the standard QGC layout. From the H12
display, pilots can plan intelligent waypoint missions, upload flight plans to
the drone, monitor real-time telemetry data, set geofences, configure failsafe
behaviours, and execute automatic follow-me, automatic circle, and one-click
return-to-home functions — all from a single device without a separate laptop
or tablet.

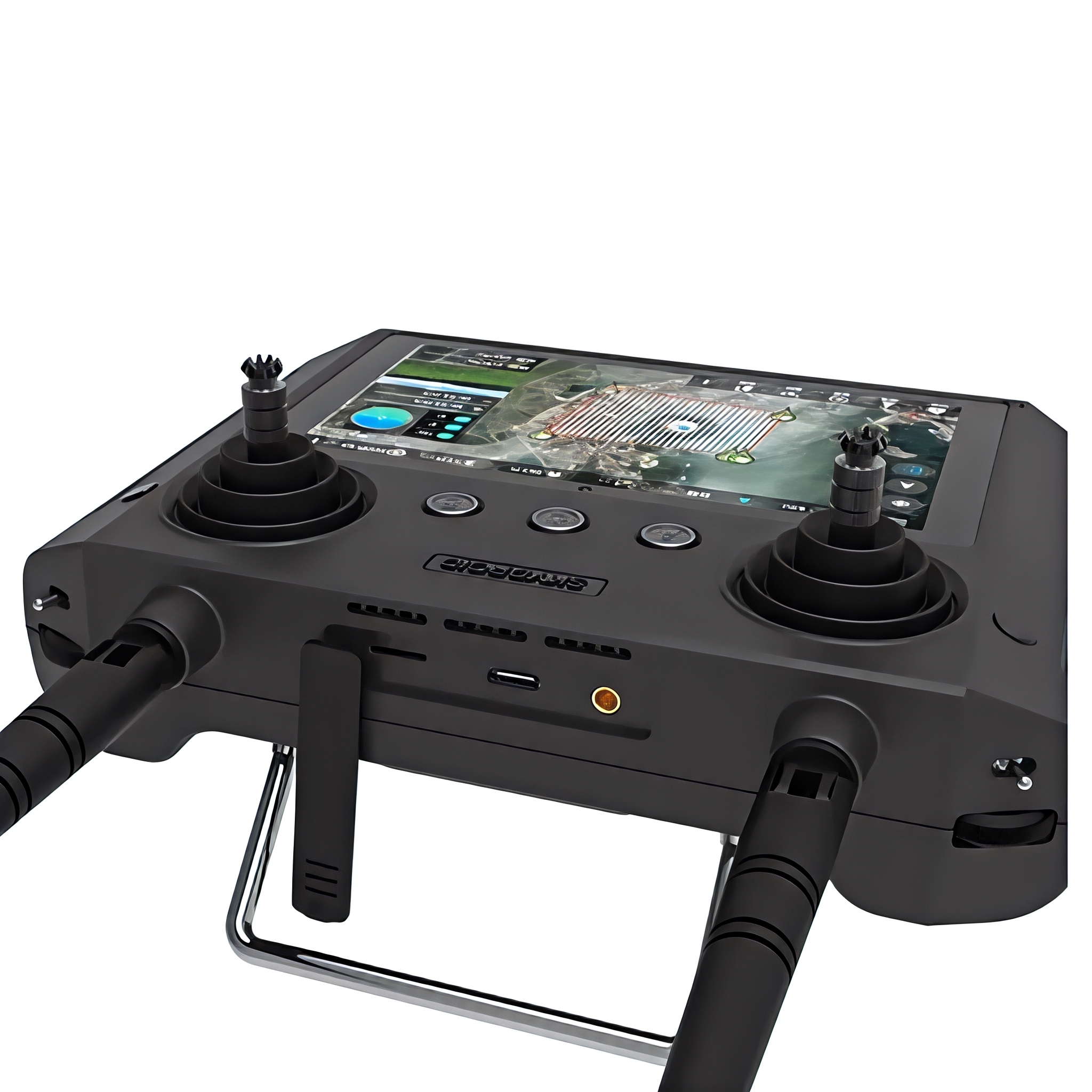

9. Rich Interface Suite – SBUS, UART, SIM, Type-C USB

The Skydroid H12 Remote Control provides one of the most
comprehensive interface sets of any handheld UAV controller at this price
point. Available interfaces include a SIM card slot for mobile network
connectivity and extended telemetry, digital camera input port (for the
optional camera upgrade), serial port transparent UART transmission, SBUS
output for direct flight controller connection, Type-C USB for high-speed
Android data transfer and charging, and RTSP wireless video streaming support
for broadcasting the live video feed to external screens, servers, or
recording software over Wi-Fi.

10. Rugged Waterproof and Dustproof Construction

The Skydroid H12 Remote Control is built using waterproof,
dustproof, and drop-resistant materials and structural design — engineered to
survive the demanding field conditions encountered in agricultural operations,
industrial inspections, surveying missions, and outdoor research deployments.
This is not a consumer-grade plastic toy controller that must be protected
from the elements — it is an industrial-grade ground control station built to
operate reliably in rain, dust, heat, and the physical stresses of field use.

Skydroid H12 Remote Control – Full Technical Specifications

What’s Included in the Box

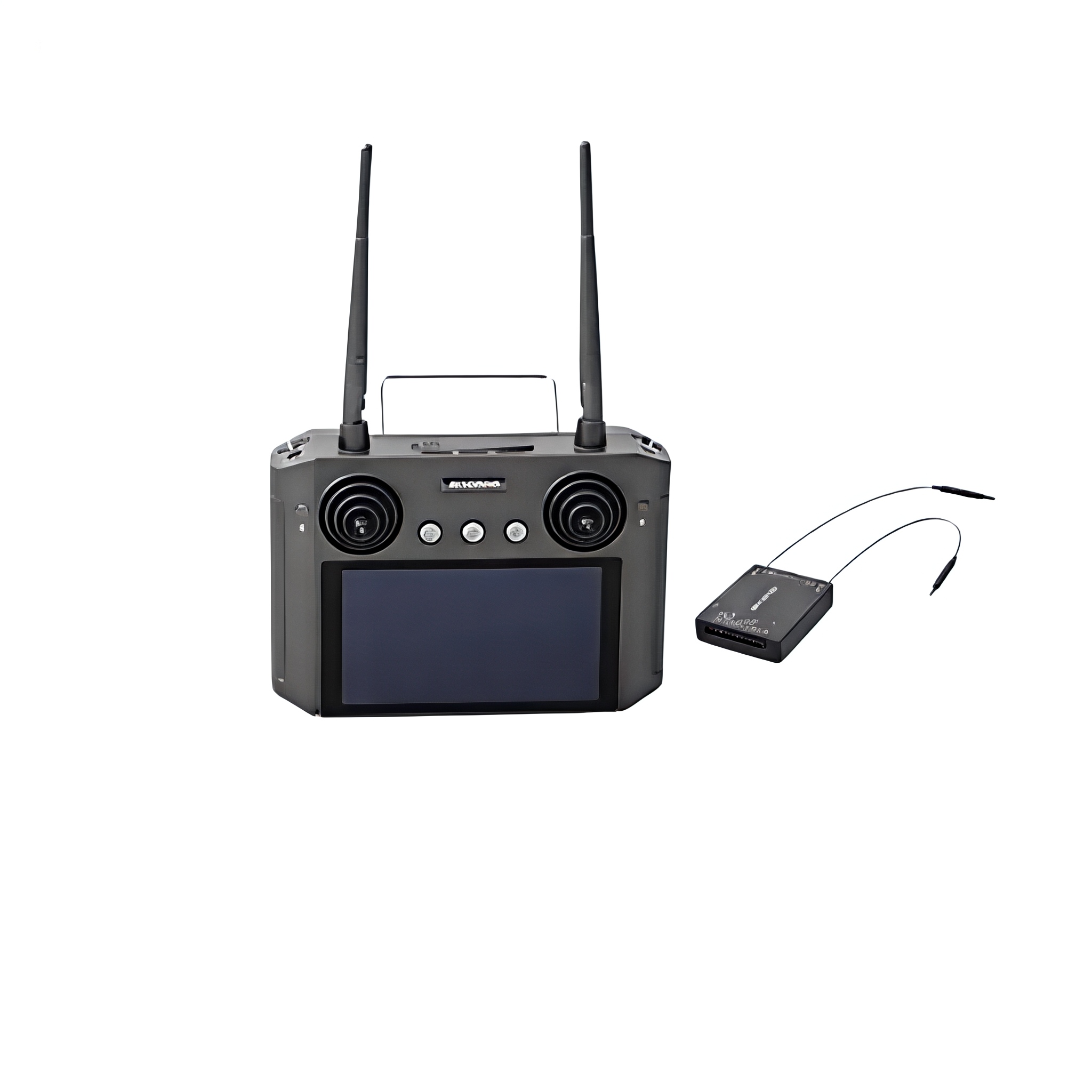

• ✅ 1× Skydroid H12 Remote Controller (with built-in display)
• ✅ 1× Skydroid R12 Receiver
• ✅ 1× Hard Shell Carry Case
• ✅ 2× Antenna Boots
• ✅ 1× USB Type-C Cable and Plug

Note: Camera and gimbal are NOT included in this variant.
A telemetry cable compatible with your specific flight controller
(Pixhawk, CUAV, Holybro, etc.) will be required — please confirm your
flight controller model before ordering.

Supported Applications and Use Cases

The Skydroid H12 Remote Control is designed and
validated for a wide range of professional UAV and robotic applications:

• 🌾 Agricultural Spray Drones – Long endurance,
  waypoint spraying missions, real-time telemetry monitoring
• 📷 Aerial Photography and Inspection – FPV control
  with future camera upgrade option, RTSP streaming to recording software
• ⚡ Power Line and Infrastructure Inspection – Long-range
  operation with stable telemetry in electrically noisy environments
• 🗺️ Surveying and Mapping – Waypoint grid missions via
  QGC, GPS-triggered photo capture, precise flight path execution
• 🚁 Custom Multi-Rotor Builds – Full Pixhawk/ArduPilot
  integration for custom quadcopters, hexacopters, and octocopters
• 🛩️ Fixed Wing UAVs – Compatible with fixed wing and
  VTOL platforms running PX4 or ArduPlane
• 🚗 Ground Robots and ROVs – Used for land vehicles,
  boats, and underwater ROVs with compatible receivers
• 🔬 Research and University Projects – SDK and open
  protocol support for custom ground station development

Skydroid H12 vs Standard Consumer RC Controllers – Why Upgrade?

Frequently Asked Questions – Skydroid H12 Remote Control

Does this Skydroid H12 Remote Control include a camera?

No. This listing is specifically for the Skydroid H12 Remote Control
Without Camera variant. It includes the H12 transmitter, R12 receiver,
carry case, and accessories, but does not include any camera or gimbal. If
you already have a camera system or prefer to use your own, this is the most
cost-effective entry point to the H12 platform.

Which flight controllers are compatible with the Skydroid H12?

The Skydroid H12 Remote Control is compatible with all
major Pixhawk-based, ArduPilot-based, and PX4-based flight controllers
including Pixhawk 4, Pixhawk 6C, CUAV V5 / V5 Nano / V5+, Holybro X7 /
X7 Pro / Nora, CubeOrange, and all other controllers with standard SBUS
input. For telemetry return data on the H12 display, a UART connection
to the flight controller’s telemetry port is required using an appropriate
cable for your specific FC model.

Can I run QGroundControl on the Skydroid H12?

Yes. The Skydroid H12 Remote Control runs a Skydroid-optimised
version of QGroundControl pre-installed on its Android system, featuring a
larger map field of view and enhanced UI compared to the standard QGC layout.
Standard QGC can also be installed from the Play Store. Mission Planner for
Android is also compatible and can be sideloaded.

What is the actual usable range of the Skydroid H12?

The 30km range specification is achieved in ideal open-field conditions
with unobstructed line of sight. In typical operating environments — semi-urban
areas, agricultural fields, light vegetation — practical range is typically
5–15km. In urban environments with significant RF interference and physical
obstructions, expect 2–5km of reliable control range. These figures are
significantly superior to most consumer RC systems, which begin losing
reliability beyond 1–3km.

Can I upgrade from the without-camera version to include a camera later?

Yes. The Skydroid H12 Remote Control has a dedicated digital
camera input port. The optional Skydroid mini camera (standard or LED night
vision) and single-axis gimbal accessories can be purchased separately and
connected to the H12 via this port at any time — making this a future-proof
investment that grows with your project requirements.

Order the Skydroid H12 Remote Control Today

The Skydroid H12 Remote Control (Without Camera) is available
now at VirtualPathshala with fast shipping across India. This is the professional
UAV ground controller that serious pilots and UAV engineers choose for demanding
applications where range, reliability, and integration capability are
non-negotiable. For complete technical documentation, firmware updates, and
SDK resources, visit the

official Skydroid website.
