TowerPro MG90S Metal Gear Micro Servo Motor – High Torque 9g Upgraded Digital Screen Actuator for Arduino & RC Smart Cars

TowerPro MG90S Metal Gear Micro Servo Motor – Upgraded High-Torque Prototyping Actuator

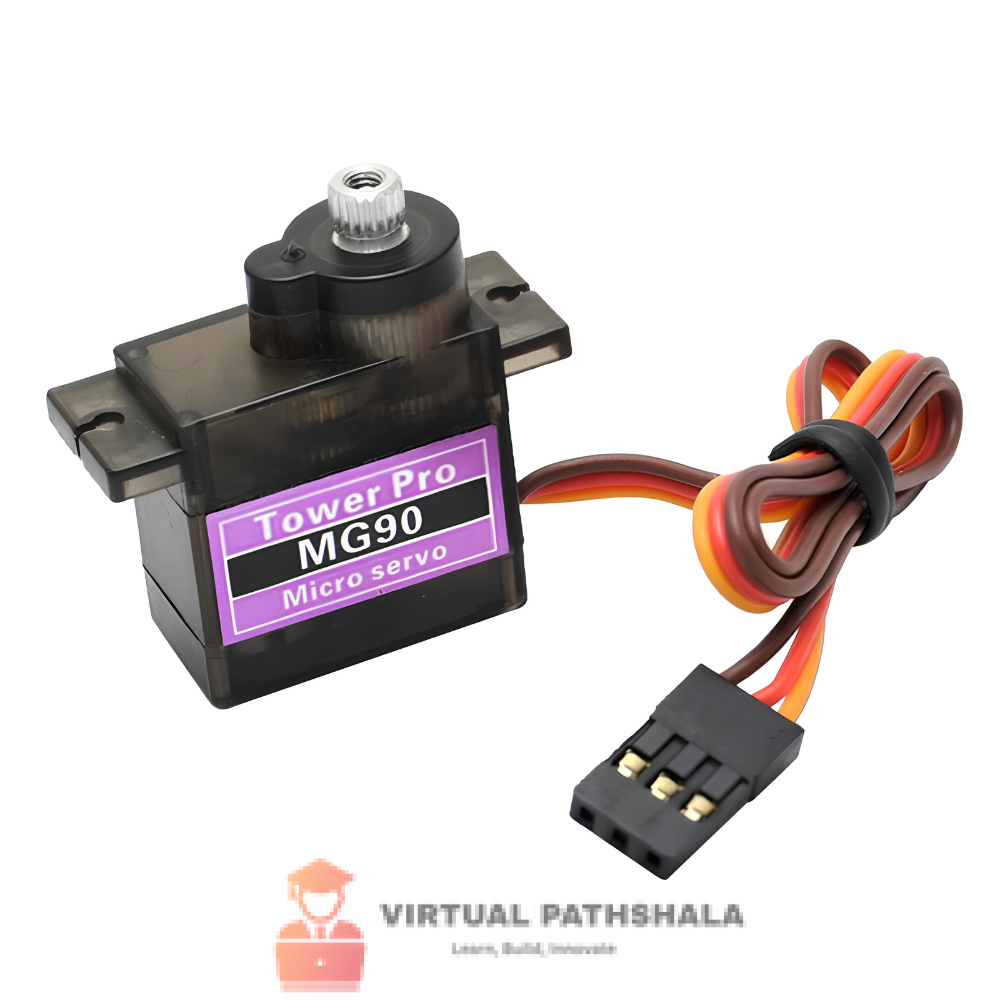

The tower pro mg90 micro servo motor (commonly logged across global inventories as the upgraded MG90S variant) is an exceptionally popular, highly durable, and cost-effective sub-micro physical actuator deployed extensively across India for robotic arm hinges, RC multi-rotor flight control flaps, small walking humanoids, and automated camera pan-tilt gimbals. Built into the classic compact 9g framework sizing bracket, this tower pro mg90 micro servo motor upgrades basic internal plastic component assemblies with ultra-rugged metal gearing grids. This reinforcement protects the motor from stripped tooth surfaces under sudden physical impacts.

This premium listing highlights the high-performance digital core variants available at VirtualPathshala. Each unit arrives pre-packaged inside a transparent static protection envelope complete with a universal three-arm accessory horn array and structural mounting screw brackets. Whether you are automating precise smart-lock latches or adjusting stabilization tabs on remote aircraft systems, the tower pro mg90 micro servo motor provides reliable positional accuracy without cluttering your development chassis weight distribution constraints. Sync this motor effortlessly with our selection of Microcontroller Prototyping Modules and specialized Distance Measurement Sensors.

Why Upgrade to the Metal-Geared MG90 Layout Over Plastic SG90 Servos?

Standard nylon-geared micro servos are economical for indoor bench testing but break down quickly when subjected to external resistance or high stress. The tower pro mg90 micro servo motor systematically eliminates this durability bottleneck. Utilizing a hardened metal gear matrix running on an internal top-shaft bearing layout, this module absorbs continuous rotational stresses easily. It delivers nearly double the working stall torque output of classic entry-level plastic alternatives while maintaining the same physical mounting footprint size inside your project chassis.

Key Features of the Tower Pro MG90 Micro Servo Motor

1. Upgraded Metal Gear Train for High Stress Tasks

The internal gearbox structure of the tower pro mg90 micro servo motor uses strong, wear-resistant metal gears. This heavy-duty design provides maximum fatigue resistance, preventing internal tooth stripping when the mechanical arm hits sudden travel blocks or supports heavy static structural weights.

2. Impressive High-Torque Power Delivery System

Don’t let the compact miniature frame fool you. When driven at a standard 6.0V DC input line, this tower pro mg90 micro servo motor produces a strong 2.2 kg-cm stall torque layout. This gives your small custom robotic grips, steering hinges, and mechanical push-rods the power needed to handle realistic working payloads safely.

3. High-Speed Positional Accuracy and Responsiveness

Driven by an internal high-resolution control circuit, the tower pro mg90 micro servo motor reads incoming command variations with minimal dead-band latency. It handles 60-degree sweep adjustments in just 0.08 seconds at peak voltages, providing snappy, real-time responses that keep your flight surfaces and balancing loops stable.

4. Universal 3-Pin Breadboard Friendly Interface Wiring

The tower pro mg90 micro servo motor features a universal 25 cm connection pigtail wire ended with a standard JR-style 2.54 mm spacing plug receiver. This design lets you hook up inputs easily to standard microcontrollers or sensor shield slots without custom soldering:

• ✅ Brown Core Wire – Connects directly to System Ground (GND) lines
• ✅ Red Core Wire – Hook up to External Regulated Positive Power Supplies (+5V to +6V DC)
• ✅ Orange Core Wire – Connects directly to Microcontroller PWM Logic Input Channels

5. Broad Microcontroller System Integration Versatility

Because the control logic layer processes standard 50 Hz PWM input streams seamlessly, this tower pro mg90 micro servo motor operates flawlessly across all major hobby and professional development ecosystems without needing specialized signal booster breakout chips:

• ✅ Arduino Uno / Nano Frameworks – Easy configuration using standard IDE native Servo.h libraries
• ✅ ESP32 & NodeMCU IoT Devices – Precise steering control via standard hardware PWM driver blocks
• ✅ Raspberry Pi Single Board Units – Clean scripting integration via standard Python GPIO timing signals

Tower Pro MG90 Micro Servo Motor – Full Technical Specifications

What Is Safely Included inside the Package

• ✅ 1× TowerPro MG90S Metal Gear Micro Servo Motor Core Assembly
• ✅ 3× Multi-Style Nylon Structural Output Horns (Single, Double, and Four-Point Arms)
• ✅ 1× Assembled Mounting Set (Screws & Lock Washers)

Frequently Asked Questions – tower pro mg90 micro servo motor

Can I power this tower pro mg90 micro servo motor directly from an Arduino’s 5V pin?

While you can use the Arduino’s 5V pin for low-stress testing with a single servo, it is not recommended for actual project assemblies. The tower pro mg90 micro servo motor is a high-torque actuator that can draw over 500mA to 800mA of current when stalled or moving heavy loads. This high current draw can easily overload the Arduino’s linear regulator, causing the board to reset or causing long-term damage. For best results, use an external 5V-6V battery pack or a dedicated buck converter to power the servo’s red and brown lines, keeping the ground connected to the Arduino.

What is the difference between standard 180-degree and 360-degree variants?

The standard 180-degree **tower pro mg90 micro servo motor** functions as a precise positional actuator. It uses an internal feedback potentiometer to sweep between specific angles based on your code commands. In contrast, the 360-degree continuous rotation variant removes this positional restriction. It acts like a small, bi-directional gear motor, where your code controls the rotation speed and direction rather than a fixed angle position.

Why does my servo stutter or jump randomly during movement sweeps?

This jumping behavior is almost always caused by insufficient current supply or a missing common ground link. If your power source drops below the minimum operating voltage when the motor starts moving, the internal controller chip will brown out and reset. To fix this, ensure your power supply can deliver at least 1A of peak current and double-check that the ground wire of your external power supply is tied directly to your microcontroller’s GND pin.

Order Your Tower Pro MG90 Micro Servo Motor Online Today

Add precise, high-strength mechanical control to your automated robot grippers, build durable steering boxes for your multi-terrain RC smart vehicles, or construct reliable valve actuators for your IoT projects. The **tower pro mg90 micro servo motor** is supplied across all Indian states with quick, dependable domestic shipping options from VirtualPathshala. For official mechanical dimension sheets, wiring layouts, and sample Arduino code repositories, please check out the Official Component101 Hardware Reference Portal.
