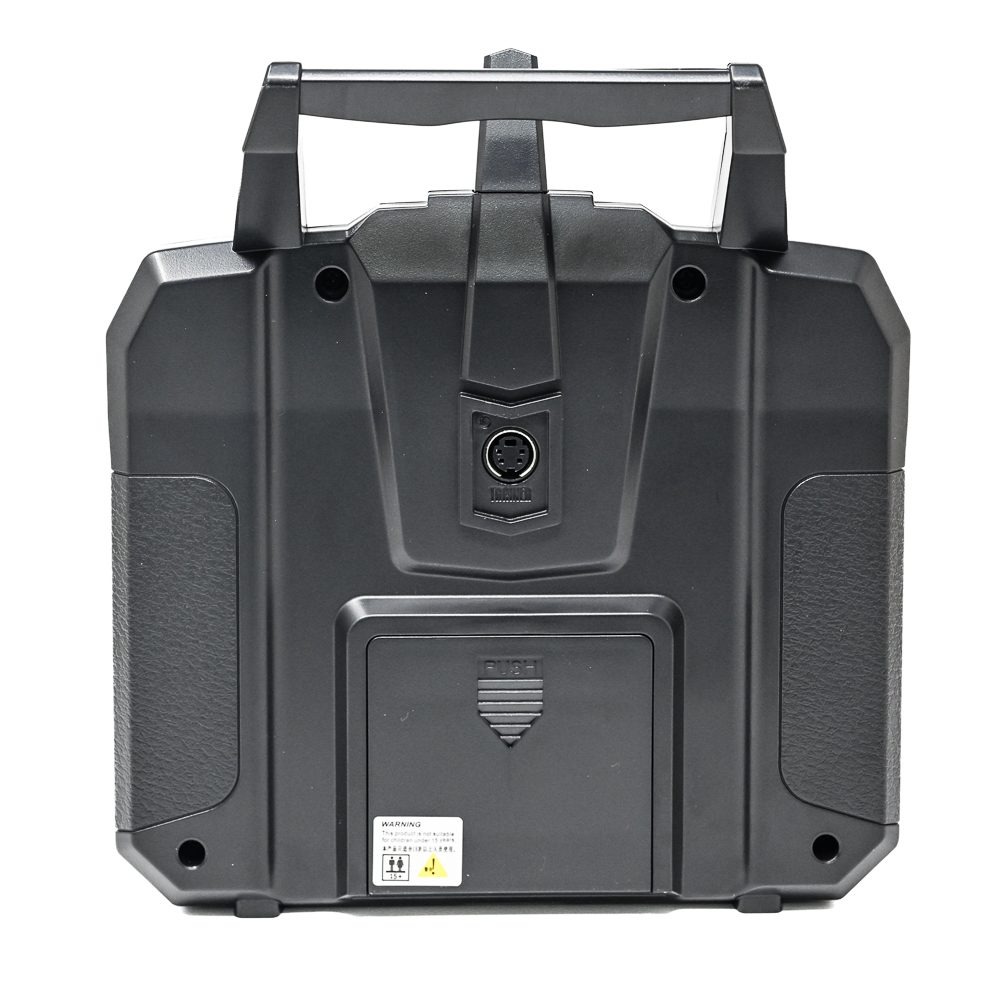

Flysky FS-i6X RC Transmitter – 10CH Radio Control System

🚀 Flysky FS-i6X RC Transmitter for Robotics & Drones

The Flysky FS-i6X RC Transmitter is a widely adopted radio control system used in drones, RC aircraft, and robotics platforms. It strikes a balance between affordability, functionality, and scalability, making it one of the most practical controllers for students and serious hobbyists.

Unlike basic transmitters, this system uses AFHDS 2A (Automatic Frequency Hopping Digital System), which ensures stable communication, low latency, and minimal interference even in crowded signal environments.

From Virtual Pathshala, this transmitter is recommended for users who want to move beyond basic remote control and start building real-world robotics systems, UAVs, and autonomous platforms.

🔧 Key Features of Flysky FS-i6X RC Transmitter

📡 Advanced AFHDS 2A Technology

• Uses frequency hopping across 135 channels
• Reduces interference from other devices
• Ensures stable long-range communication

🔄 Expandable Channel System (6 → 10 Channels)

• Default: 6 channels
• Expandable to 10 channels via firmware update
• Supports:
  • Flight modes
  • Camera gimbal control
  • Robotics multi-actuator systems

📊 Telemetry & Sensor Support

• Bidirectional communication system
• Supports:
  • Voltage monitoring
  • Altitude sensors
  • Temperature data

🎮 Precision Control & Resolution

• 4096-step resolution sticks
• Smooth and accurate movement control
• Ideal for:
  • Drone stabilization
  • Robotic arm control

🔋 Low Power Consumption

• Uses efficient RF components
• Extends battery life significantly compared to older systems

📺 LCD Display & Model Memory

• Backlit LCD screen
• Stores multiple models
• Easy configuration and switching

📊 Technical Specifications

🔹 Transmitter (FS-i6X)

🔹 Receiver (FS-iA10B)

⚖️ Comparison Table

Insight:
The Flysky FS-i6X RC Transmitter offers the best balance between affordability and advanced control.

🔌 Wiring / Setup Guide

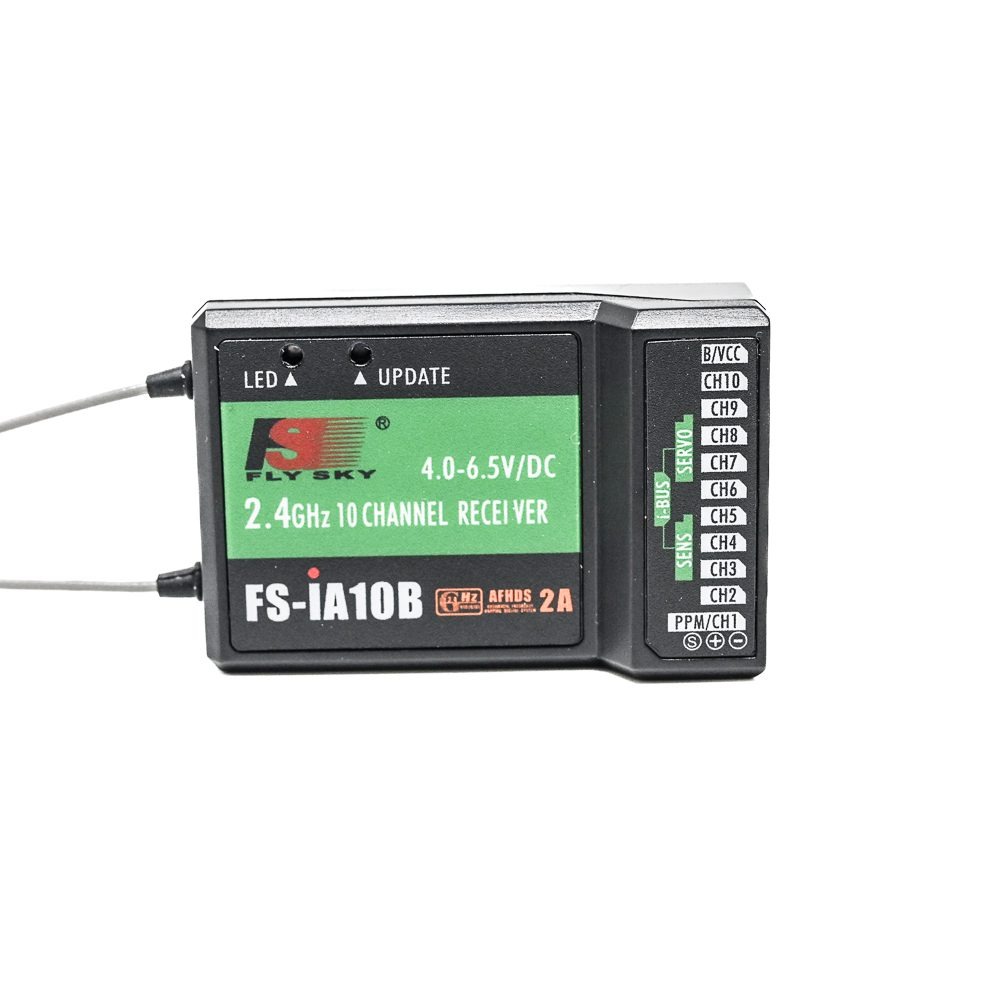

🧩 Receiver Connection (FS-iA10B)

🛠️ Basic Setup Steps

1. Power ON transmitter
2. Connect receiver to power supply
3. Press bind button on receiver
4. Enter bind mode on transmitter
5. Wait for stable LED → pairing complete

🔗 Drone / Arduino Integration

• Use i-BUS for:
  • Flight controllers
  • Arduino-based robotics
• Connect:
  • i-BUS → UART RX pin

❓ Troubleshooting FAQ

1. Transmitter not binding with receiver?

• Ensure correct protocol (AFHDS 2A)
• Check power supply

2. No signal in flight controller?

• Enable i-BUS mode
• Configure UART in software

👉 Common issue seen in setups where receiver is connected but no response is detected.

3. Range is low?

• Check antenna orientation
• Avoid signal obstruction

4. Channels not working?

• Check channel mapping
• Update firmware

5. Can beginners use this?

Yes, but requires basic setup understanding

6. Does it support drones?

Yes, widely used in:

• FPV drones
• Fixed-wing aircraft
• Robotics

7. Is telemetry useful?

Critical for:

• Battery monitoring
• Flight safety

8. Why choose i-BUS over PWM?

• Fewer wires
• Faster response
• Better for modern systems

🔮 Applications & Use Cases

• Drone control systems
• RC airplanes and helicopters
• Robotics control platforms
• Autonomous vehicle projects
• STEM lab experiments
• Industrial remote control systems

🔗 Useful Links

• You can also explore our full range of Robotics Kits for Schools From Virtual Pathshala.
• For full specifications, refer to the official Flysky documentation
