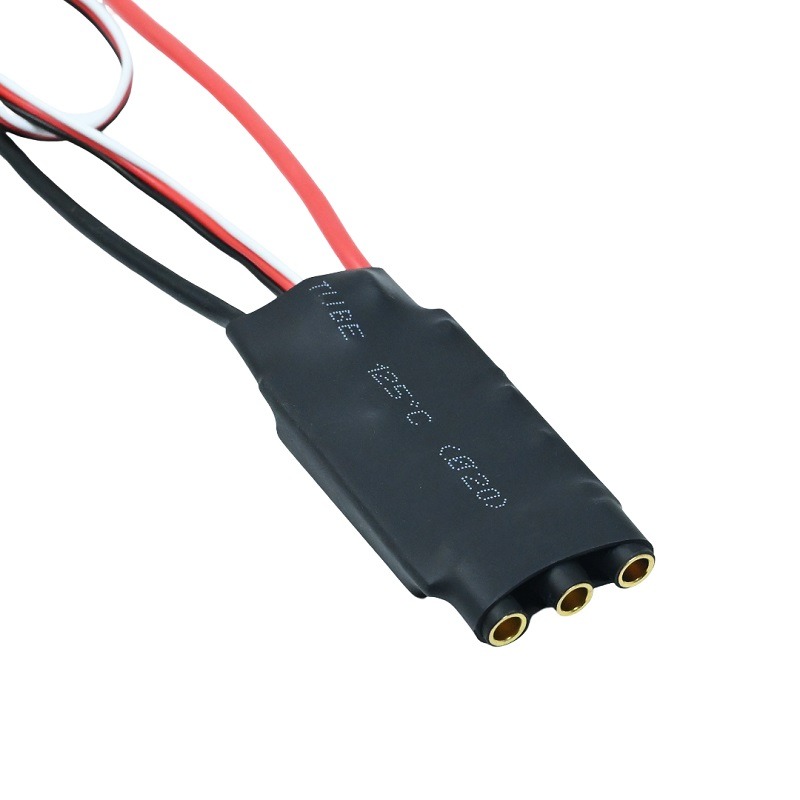

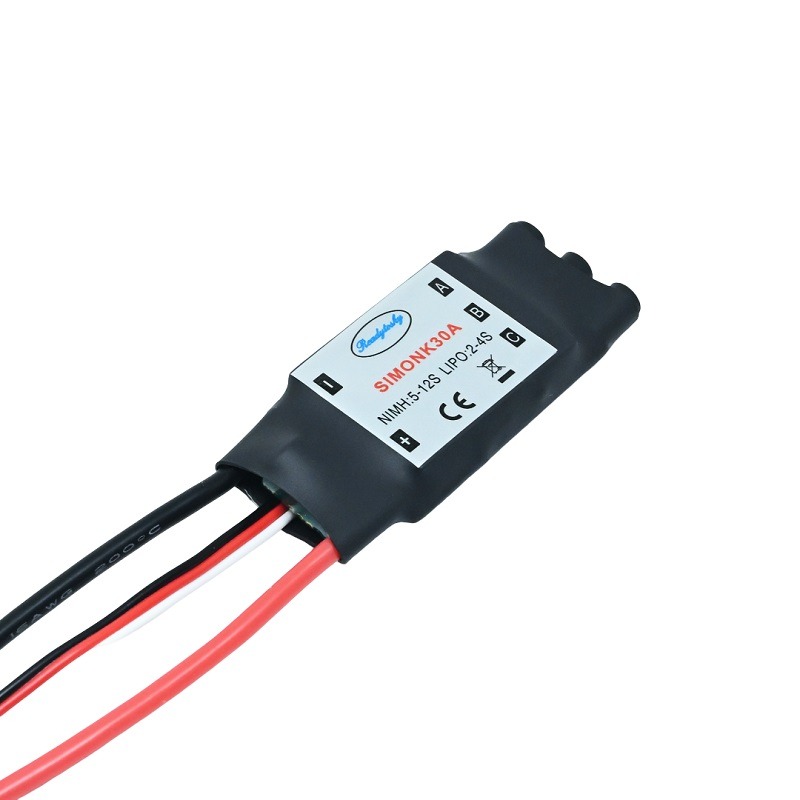

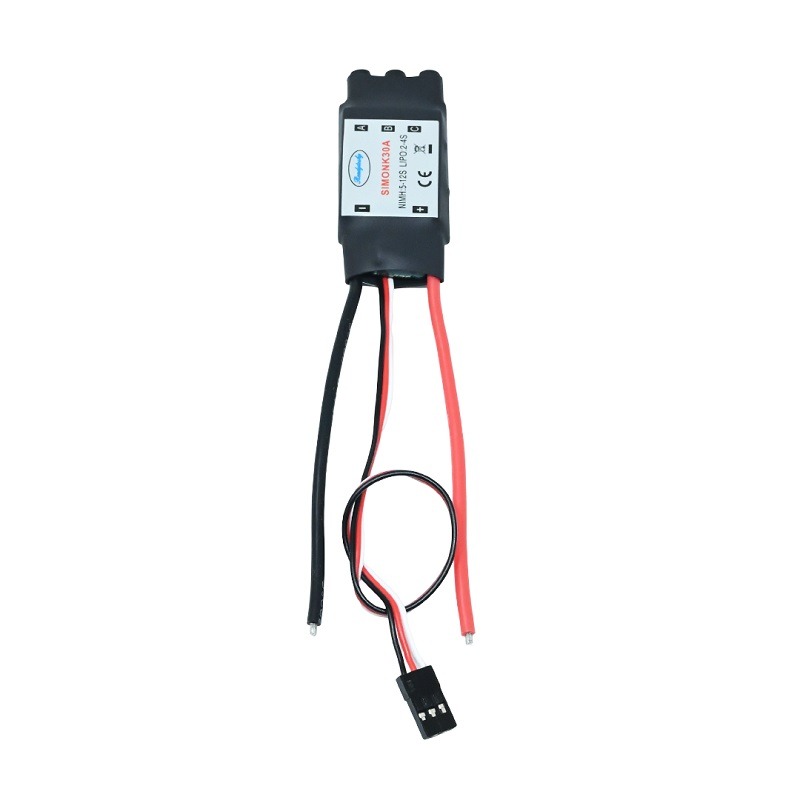

ReadytoSky 30A ESC – SimonK Speed Controller for Drones
Achieve smooth, responsive motor control with the ReadytoSky 30A ESC, built with Simonk firmware for high-speed performance in drones and RC systems. Ideal for FPV racing, quadcopters, and robotics applications requiring precise throttle response.
- 30A continuous current for stable motor performance
- Pre-installed Simonk firmware for fast response
- Comes with female banana connectors for easy setup
- Ideal for drones, quadcopters, and RC aircraft
- Compatible with most brushless motors and flight controllers
₹578.00
Payment Methods:
Description
🚀 ReadytoSky 30A ESC for Drone & RC Motor Control
The ReadytoSky 30A ESC (Electronic Speed Controller) is a critical component in any drone or RC system. It acts as the bridge between your flight controller and brushless motor, translating throttle signals into precise motor speed.
Unlike generic ESCs, this version comes pre-flashed with Simonk firmware, known for ultra-fast response time and minimal latency. This makes it especially useful for FPV drones, racing quadcopters, and robotics applications where reaction time directly impacts performance.
From Virtual Pathshala, this ESC is selected for learners and builders who want reliable, consistent motor control without complex setup.
🔧 Key Features of ReadytoSky 30A ESC
⚡ SimonK Firmware for Fast Response
- Optimized for low-latency signal processing
- Faster throttle response compared to stock firmware
- Ideal for racing drones and precision control
🔋 30A Continuous Current Output
- Handles medium to high-power motors
- Suitable for:
- 2204–2212 brushless motors
- Drone and RC aircraft builds
🔌 Pre-Soldered Banana Connectors (Female)
- Quick plug-and-play motor connection
- Reduces soldering effort
- Saves setup time for beginners
🎯 High Efficiency & Stability
- Smooth motor acceleration
- Reduced heat generation
- Improved battery efficiency
🔄 Wide Compatibility
- Works with:
- Flight controllers (Betaflight, Cleanflight)
- Arduino-based drone systems
- Standard RC receivers
📊 Technical Specifications
| Feature | Details |
|---|---|
| Current Rating | 30A |
| Firmware | SimonK |
| Input Voltage | 2–4S LiPo |
| BEC | No |
| Connector Type | Female Banana |
| Signal Type | PWM |
| Weight | ~25g |
⚖️ Comparison Table
| Feature | ReadytoSky 30A ESC | BLHeli 30A ESC |
|---|---|---|
| Firmware | SimonK | BLHeli |
| Response Speed | Fast | Very Fast |
| Configuration | Simple | Advanced |
| Best For | Beginners + FPV | Advanced users |
| Cost | Affordable | Higher |
Insight:
The ReadytoSky 30A ESC is better for users who want reliability without complex tuning.
🔌 Wiring / Connection Guide
🧩 ESC Connection Layout
| Wire | Function |
|---|---|
| Red | Power (+) |
| Black | Ground (-) |
| Yellow/White | Signal (to flight controller) |
| 3 Motor Wires | Connect to brushless motor |
🛠️ Setup Steps
- Connect motor wires to ESC outputs
- Connect ESC power wires to battery (via PDB)
- Connect signal wire to flight controller
- Calibrate ESC via transmitter
- Test motor rotation
🔄 Motor Direction Fix
- Swap any two motor wires → reverses direction
❓ Troubleshooting FAQ
1. Motor not spinning?
- Check power supply
- Verify signal connection
2. ESC overheating?
- Overloaded motor
- Poor airflow
3. Beeping sound but no rotation?
- Throttle calibration required
4. Can beginners use this ESC?
Yes, ReadytoSky 30A ESC is beginner-friendly
5. Does it support 4S battery?
Yes, within voltage limits
6. What motors are compatible?
- 22xx series brushless motors
7. Why choose SimonK firmware?
- Faster response
- Lower latency
8. Is this good for FPV drones?
Yes, widely used in racing drones
🔮 Applications & Use Cases
- FPV racing drones
- Quadcopter builds
- RC airplanes
- Robotics motor control
- DIY UAV projects
🎯 Who Should Buy ReadytoSky 30A ESC
- Drone beginners building first quadcopter
- FPV racers needing responsive ESC
- Robotics students working on motor control
- Hobbyists upgrading from basic ESC
🔗 Useful Links
- This ESC pairs well with our Robotics Kits for Schools From Virtual Pathshala for hands-on learning.
- Learn more about ESC working principles: https://oscarliang.com/esc-explained/
