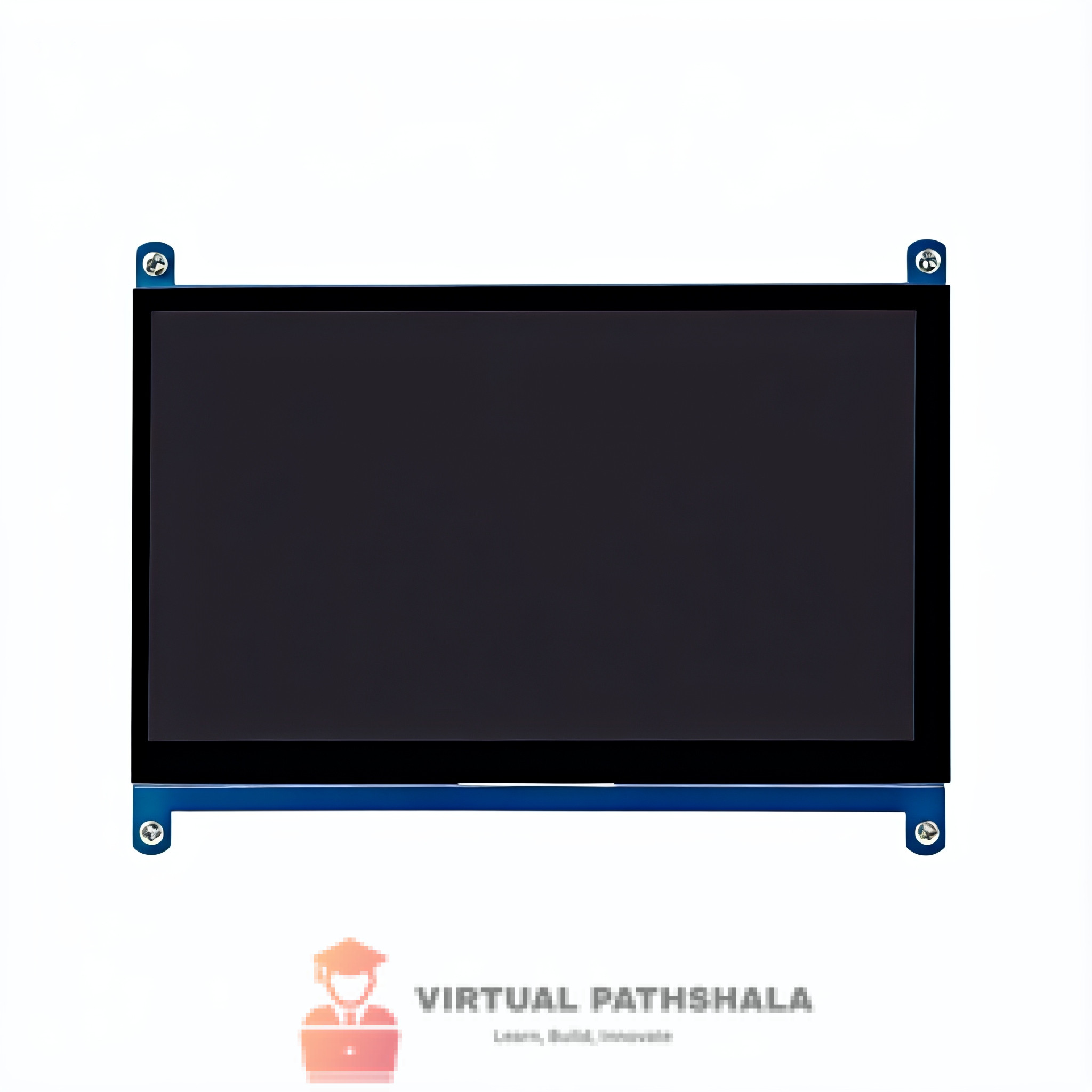

Waveshare 7-Inch HDMI Capacitive Touch Screen LCD (C) – 1024×600, IPS Panel, Low Power, Supports Raspberry Pi & Windows PC (Rev 4.1)
Bring high-definition clarity and smooth touch response to your projects with the Waveshare 7-Inch HDMI LCD (C). Featuring a vibrant IPS panel with a hardware resolution of 1024×600 and a wide 170° viewing angle, this low-power display offers up to 5-point capacitive touch control via a standard driver-free USB interface. Perfect for the Raspberry Pi ecosystem, Jetson Nano, and general desktop computer monitors.
Original price was: ₹5,299.00.₹4,649.00Current price is: ₹4,649.00.
Description
The Waveshare 7-Inch HDMI LCD (C) is a premium, compact display solution engineered for maker projects, industrial HMIs, and secondary desktop monitoring. Equipped with a high-fidelity IPS display matrix, it delivers deep contrast, sharp text, and a highly accurate 170° viewing angle that prevents color shifting at off-axis perspectives.
This specific unit features the Rev 4.1 hardware upgrade, which enhances anti-interference circuit design, introduces backlight brightness adjustment directly through the USB interface, and upgrades the USB touch protocol for universal plug-and-play compatibility. Running completely driver-free on standard operating systems, this capacitive display relies on standard HID protocols to enable up to 5-point touch tracking on PCs and responsive single-point or multi-point interactions on mini-PC environments.
KEY FEATURES:
-
Stunning IPS Panel: Hardware resolution of 1024×600 pixels provides clear text and accurate color accuracy over a 170° expansive viewing angle.
-
Capacitive Touch: Supports up to 5-point touch response (depending on the operating system) with zero driver requirements.
-

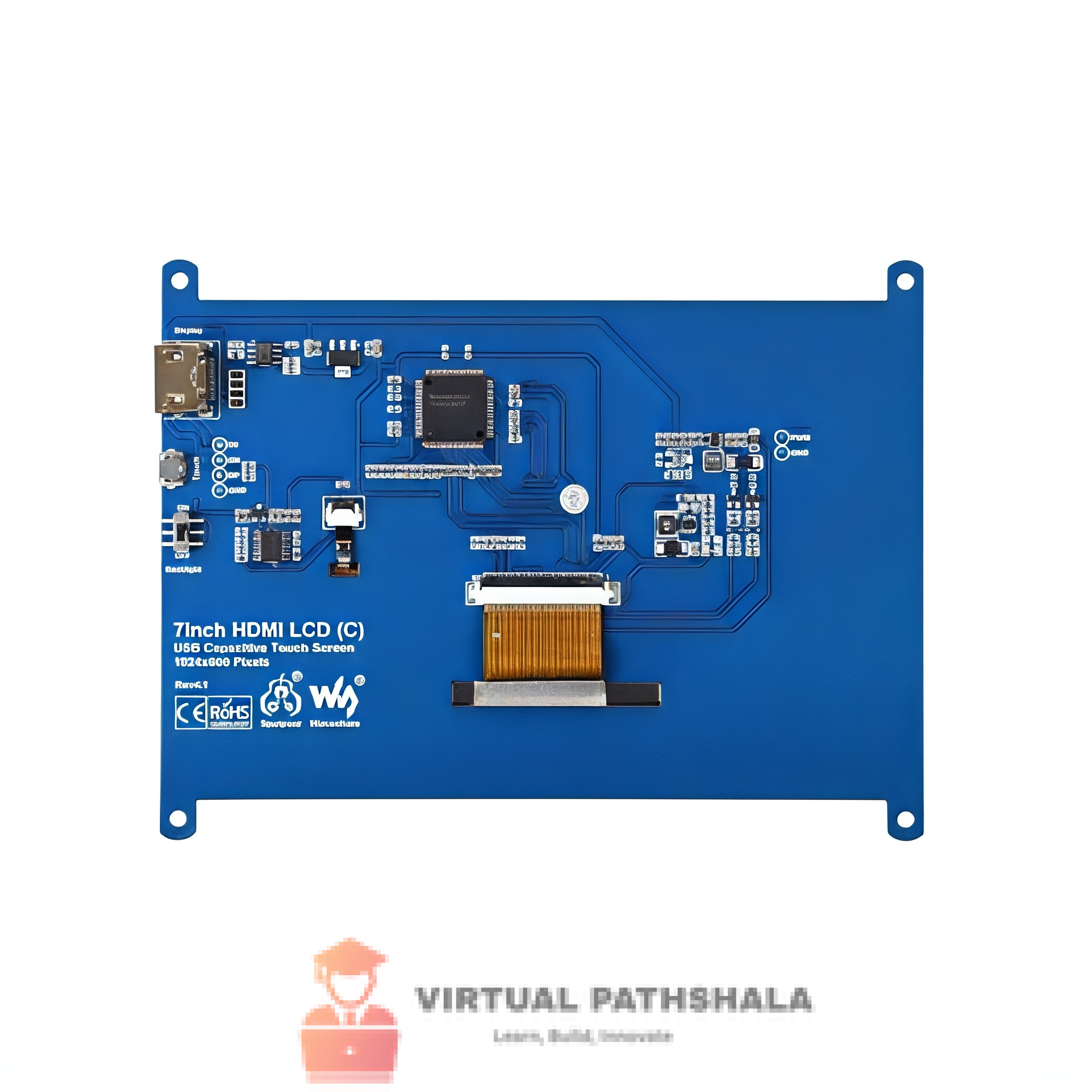

Rev 4.1 Hardware Improvements: Upgraded USB touch protocol for superior OS integration, modified drive circuitry to enhance anti-interference, and native backlight adjustment via the USB interface.
-
Low Power Consumption: Optimized backlight driver configuration allows for highly efficient power management and heat reduction.
-
Versatile Connectivity: Direct HDMI port for display streams and a dedicated Micro USB interface for power and touch communication.
Device & System Support
Raspberry Pi Ecosystem
-
Supported OS: Raspberry Pi OS, Ubuntu, Kali, and Retropie.
-
Compatibility: Fully compatible with all models (Direct HDMI plug-and-play for Raspberry Pi 4B/3B+/3B/2B; Requires an additional Micro HDMI/Mini HDMI cable or adapter for Pi 5 and Zero series).
Mini PCs & Dev Boards
-
Jetson Nano: Supports Ubuntu, driver-free plug-and-play.
-
Core Boards: Banana Pi, BeagleBone Black, etc. (using generic HDMI output configurations).
Desktop PC
-
Supported OS: Windows 11 / 10 / 8.1 / 8 / 7.
-
Touch Points: Supports up to 5-point precise touch control with no driver installation required.
| Parameter | Specifications |
| Brand | Waveshare |
| Model Version | 7inch HDMI LCD (C) / Rev 4.1 |
| Screen Size | 7.0 Inch |
| Panel Type | IPS Matrix |
| Hardware Resolution | 1024 × 600 Pixels (Software configurable up to 1920 × 1080) |
| Viewing Angle | 170° |
| Touch Technology | Capacitive Touch (Standard HID Protocol) |
| Touch Interface | Micro USB Port |
| Display Interface | HDMI Port |
| Max Brightness | 300 cd/m² |
| Contrast Ratio | 800:1 |
| Color Gamut | 45% NTSC |
| Backlight Control | Adjustable via USB interface / Backlight slide-switch toggle |
| Module Dimensions | 164.90mm × 106.96mm × 8.0mm |
| Active Display Area | 154.21mm × 85.92mm |
| Certifications | CE, RoHS Compliant |

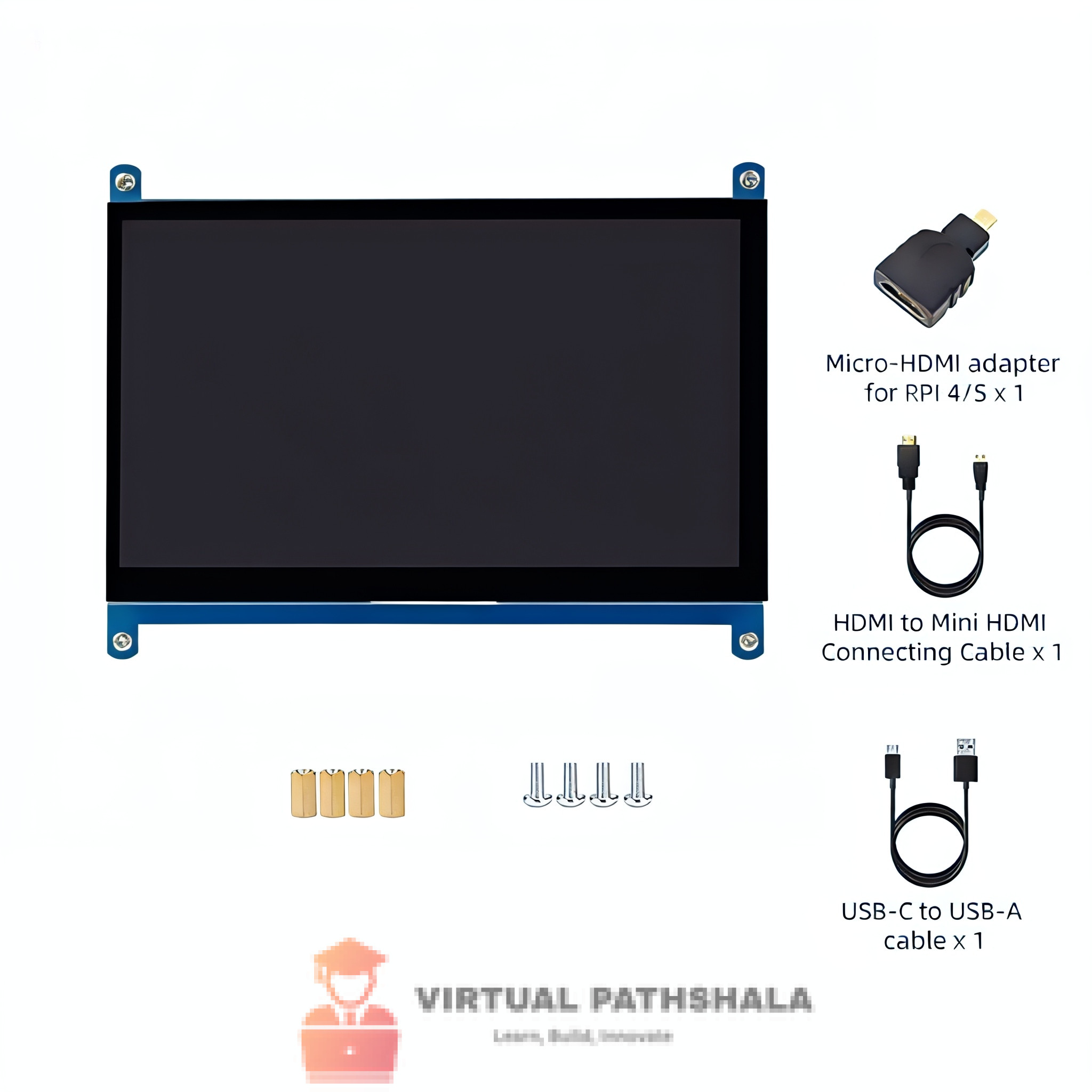

Package Includes:
1 x Waveshare 7inch 1024×600 HDMI, IPS, Low Power Capacitive LCD (C) Touch Screen
